    Steel Structure Connection Details: Key Drawings for Precise Assembly

    Steel Structure Connection Details: Key Drawings for Precise Assembly

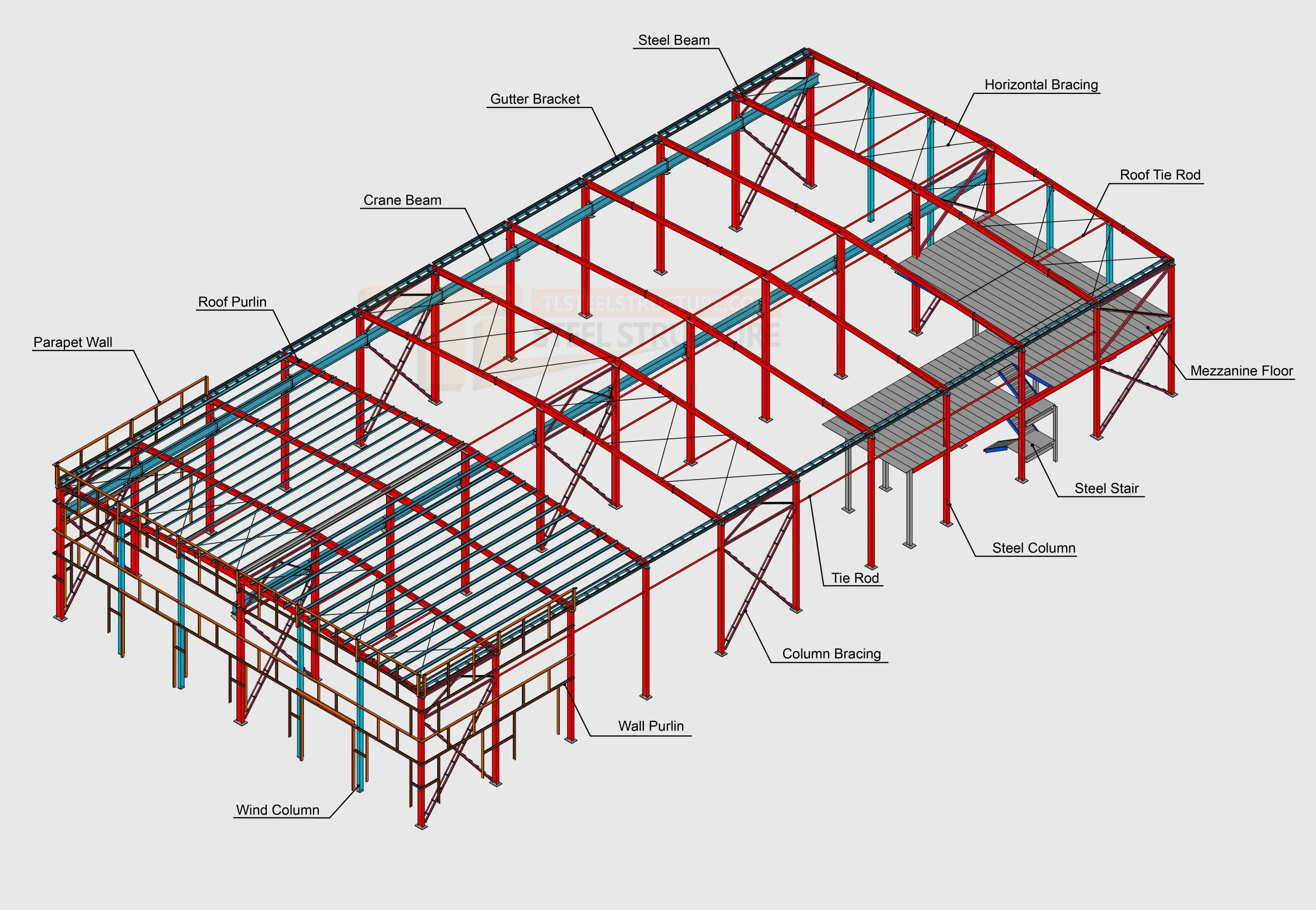

    Steel Frame Structural Drawing

    Steel Structure Connection Details: Key Drawings for Precise Assembly 1

    Steel frame structure primarily consist of the following components：

    steel column/steel beam /column bracing /horizontal bracing/wall purlin/roof purlin /crane beam/tie rod/parapet wall /gutter bracket

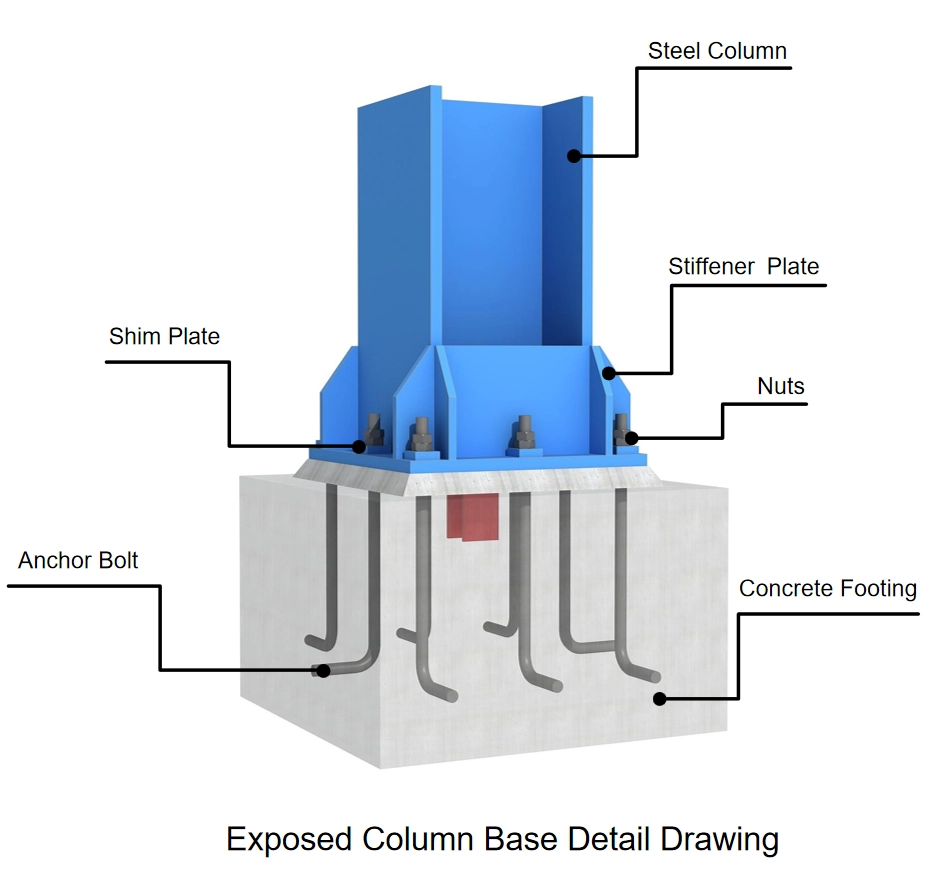

    Exposed Column Base

    Steel Structure Connection Details: Key Drawings for Precise Assembly 2

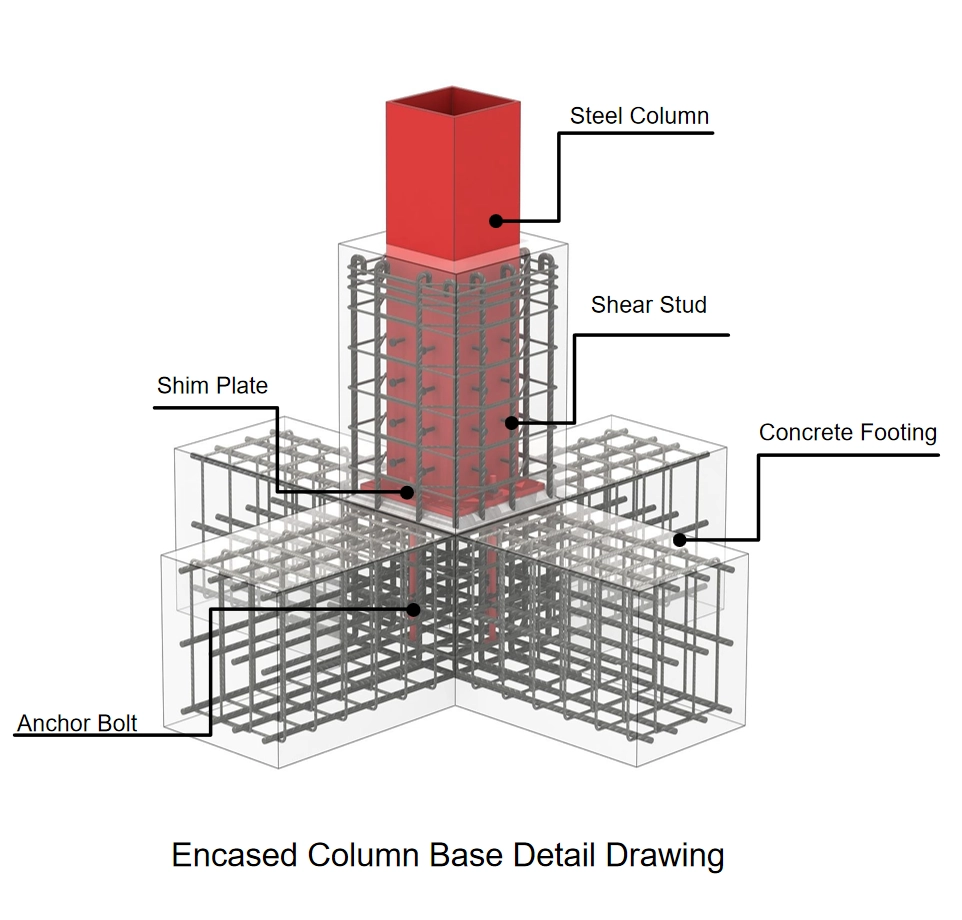

    Encased Column Base

    Steel Structure Connection Details: Key Drawings for Precise Assembly 3

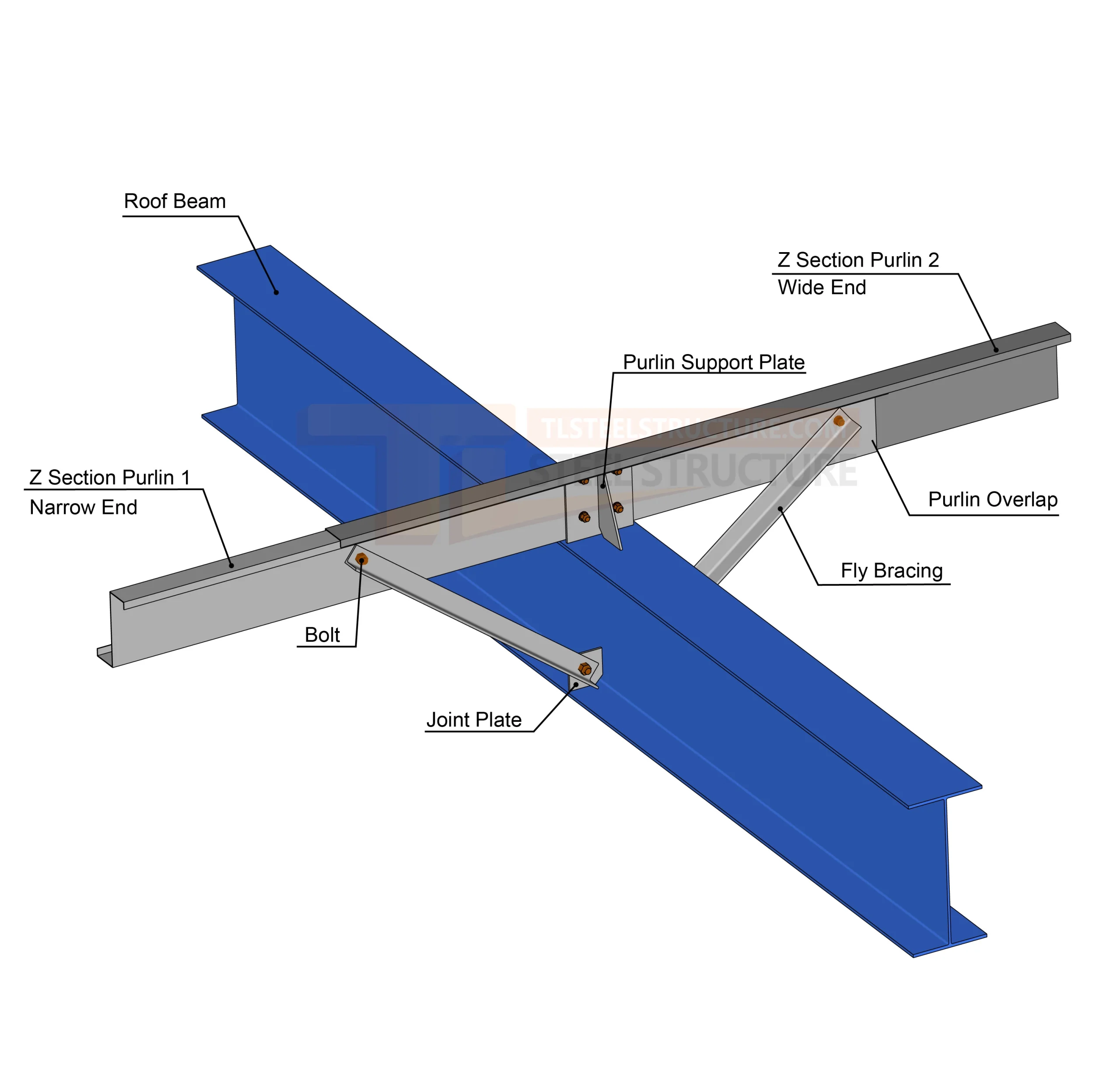

    Roof Purlin and Fly Bracing Connection

    Steel Structure Connection Details: Key Drawings for Precise Assembly 3
    Intermediate Column Horizontal Connection

    Steel Structure Connection Details: Key Drawings for Precise Assembly 5

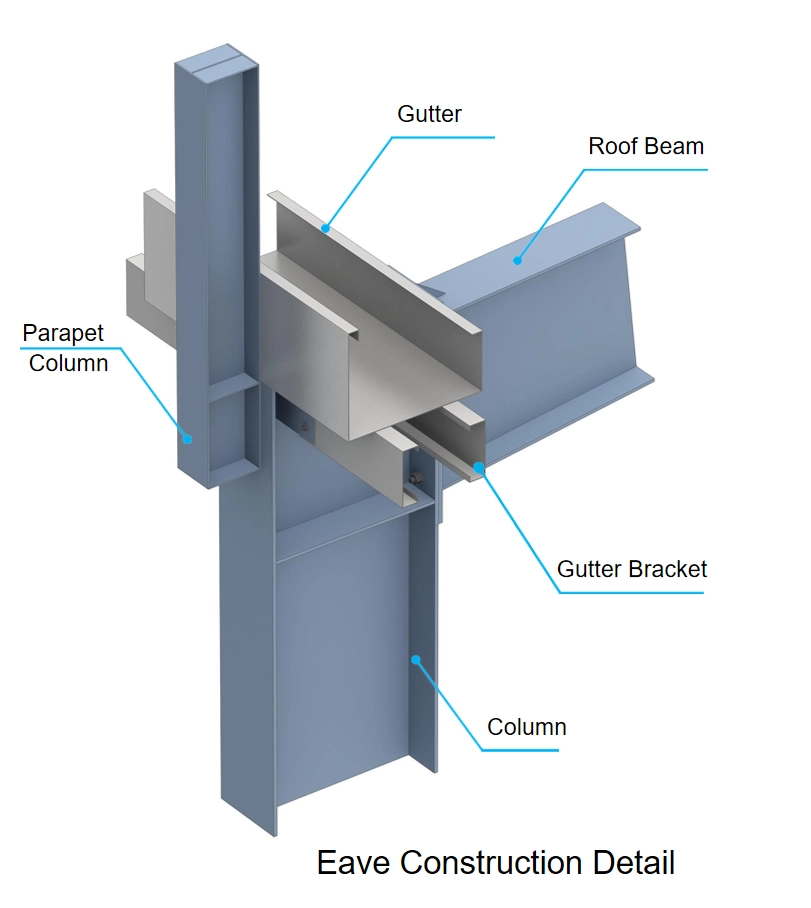

    Eave Construction Detail

    Steel Structure Connection Details: Key Drawings for Precise Assembly 6
